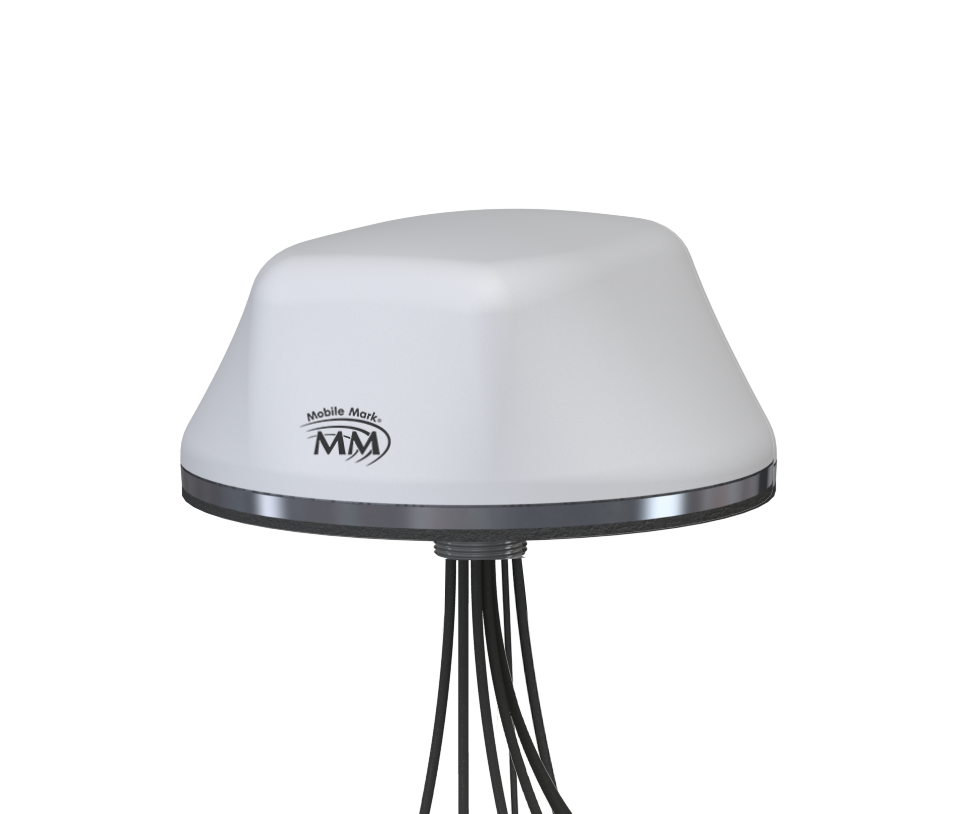

LTMG702 (2x 4G LTE, 4x WiFi, GNSS)

LTMG702 (2x 4G LTE, 4x WiFi, GNSS)

LTE, 4×4 Wi-Fi, and GNSS Antenna

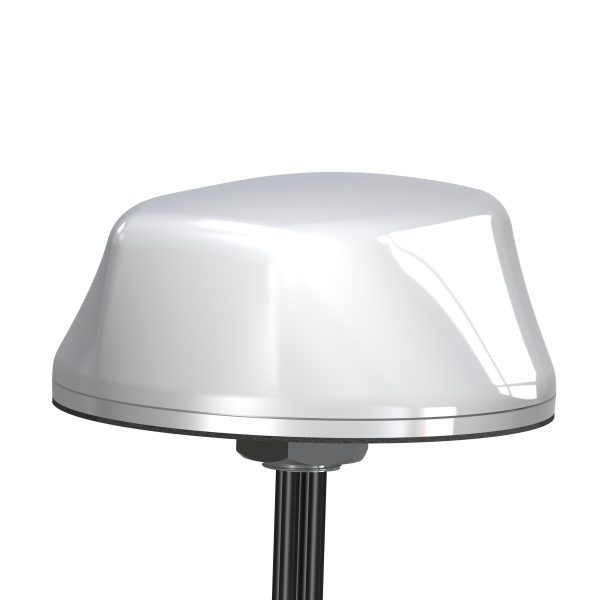

The LTMG702 is a seven-element vehicle antenna that supports 2×2 LTE, 4×4 dual-band Wi-Fi, and active GNSS from one low-profile roof-mounted unit.

Key Features

  • Delivers reliable 2×2 LTE connectivity across low-band and higher-frequency ranges.
  • Expands onboard Wi-Fi capacity with four independently cabled elements.
  • Adds multi-constellation navigation and tracking without another roof antenna.
  • Consolidates seven RF connections at one compact mounting point.
  • Rugged housing protects cellular, Wi-Fi, and GNSS connections in harsh conditions.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

2×2 LTE, 4×4 Wi-Fi, and GNSS in One Mount.

The LTMG702 brings 2×2 LTE, four dual-band Wi-Fi paths, and active GNSS together in one compact vehicle antenna. Its seven-element architecture supports higher-capacity onboard wireless and positioning while keeping the installation within one roof-mounted housing.

2×2 LTE Connectivity: Two cellular elements cover 694–960 and 1710–3700 MHz for compatible 2×2 LTE routers and gateways.

4×4 Dual-Band Wi-Fi: Four Wi-Fi elements each cover 2.4–2.5 and 4.9–6.0 GHz with 5 dBi gain for compatible 4×4 equipment.

Integrated GNSS Positioning: The active GNSS element supports GPS, Galileo, GLONASS, QZSS, and BeiDou without requiring a separate roof antenna.

Rugged Multi-System Protection: The IP69K-rated stud mount helps keep dust and high-pressure water from reaching internal components. UV-inhibitive ASA, corrosion-resistant aluminum, and a −40 °C to +80 °C operating range protect against sun, moisture, extreme heat, and cold.

The LTMG702 provides seven RF paths for connected vehicles built around 2×2 LTE, 4×4 Wi-Fi, and GNSS.

Ideal Applications

  • 2×2 LTE fleet routers
  • 4×4 onboard Wi-Fi networks
  • Connected transportation vehicles
  • Vehicle navigation and tracking

Example Model Configurations: LTM702-3C3C3C3C3C3C2C-WHT-180, LTMG702-3C3C3C3C3C3C2C-WHT-180, LTMG702-3C3C3J3J3J3J2C-BLK-180

Key Specifications

Feature Specification
Technology 4G LTE, GNSS, Wi-Fi
Frequency

Cellular: 694–960 MHz; 1710–3700 MHz

Wi-Fi: 2.4–2.5 GHz; 4.9–6.0 GHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Cellular: 3 dBi low band; 4 dBi high band

Wi-Fi: 5 dBi

GNSS: 5 dBi RHCP; 26 dB ±3 dB LNA
Configuration 2 × cellular; 4 × Wi-Fi; 1 × GNSS
Bands

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106, 111
MIMO

Cellular: 2×2 MIMO

Wi-Fi: MIMO
Polarization

GNSS: RHCP
GNSS Bias 2.7–5 VDC; Current 20 mA max / 10 mA typical
Connector / Cable

Connectors: Cellular/GNSS: SMA plug; Wi-Fi: reverse-polarity SMA plug

Cable: Cellular/Wi-Fi: LL-195; GNSS: RG-174

Length: All paths: 15 ft (4.5 m)
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (139 × 60 mm)
Material

Housing: ASA UV-inhibitive plastic

Base: Corrosion-resistant aluminum
Environmental Rating / Qualifications

Ingress: IP69K (stud mount, when properly mounted)

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C

Standards: RoHS compliant
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTM702-3C3C3C3C3C3C2C-WHT-180 2× LTE elements; 4× Wi-Fi elements; 1× GPS element; Stud / through-hole; White radome; 6× LL-195; 1× RG-174; 7× SMA Plug; All cables: 180 in (15 ft)
LTMG702-3C3C3C3C3C3C2C-WHT-180 2× LTE elements; 4× Wi-Fi elements; 1× GLONASS/GPS element; Stud / through-hole; White radome; 6× LL-195; 1× RG-174; 7× SMA Plug; All cables: 180 in (15 ft)
LTMG702-3C3C3J3J3J3J2C-BLK-180 2× LTE elements; 4× Wi-Fi elements; 1× GLONASS/GPS element; Stud / through-hole; Black radome; 6× LL-195; 1× RG-174; 3× SMA Plug; 4× Rev Pol SMA Plug; All cables: 180 in (15 ft)

Tech Documents & Resources

LTMG702 Spec Sheet

File size: 509.66 KB
Created: 18-12-2020
Updated: 06-10-2023
Hits: 1610
Download Preview

LTM702 Series Radiation Pattern

File size: 1.17 MB
Created: 22-05-2020
Updated: 22-05-2020
Hits: 1733
Download Preview
