LTMG944 (4xLTE, 4xWiFi, GNSS)

Dual Carrier Multi-Band Antenna

9-Cables: 4xLTE, 4xWiFi & 1xGNSS

Cables 1-4 (LTE): 694-960 MHz, 2 dBi & 1710-3700 MHz, 5 dBi
Cables 5-8 (WiFi): 2.4-2.5 & 4.9-6.0 GHz, 5 dBi
Cable 9 (GNSS): 1575 MHz & 1602 MHz, 5 dBi

The LTM944 models contain a GPS-only module rather than a combined GPS/Glonass module.

The LTMG9 Series always contains 4xLTE for dual carrier coverage, but it can also be configured with fewer WiFi elements. The model numbers will change as follows:

LTMG943: 4xLTE, 3xWiFi, 1xGNSS
LTMG942: 4xLTE, 2xWiFi, 1xGNSS
LTMG941: 4xLTE, 1xWiFi, 1xGNSS
LTMG940: 4xLTE, 1xGNSS

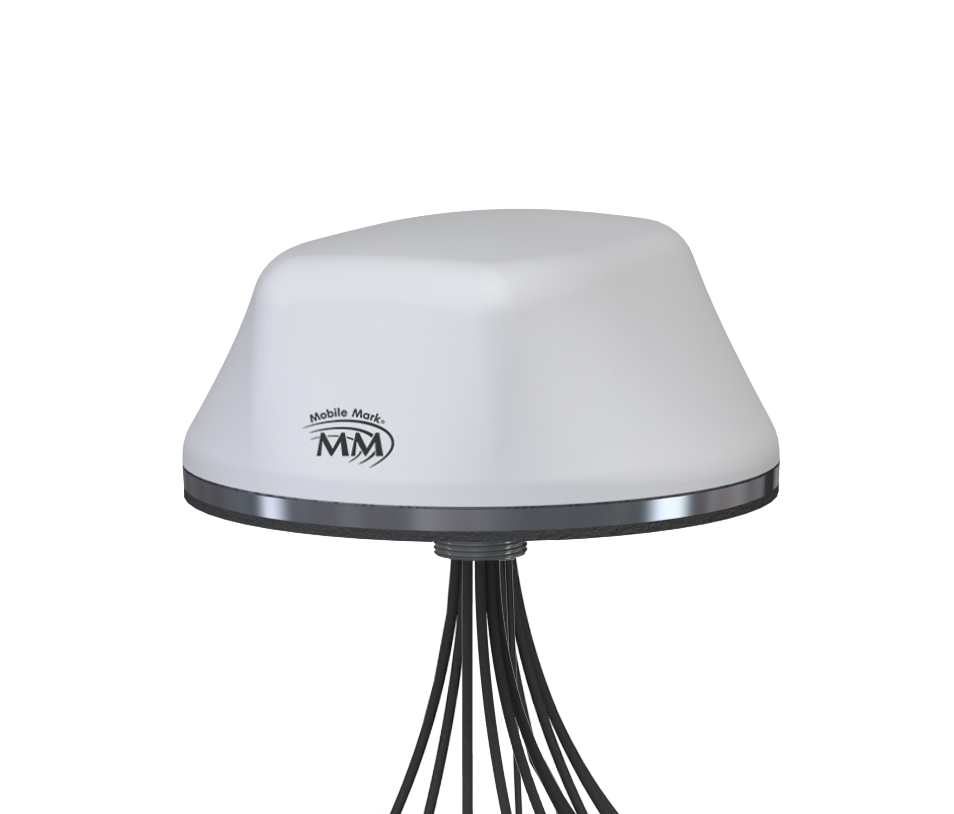

The LTMG944 is a 9-cable antennas with 4xLTE, 4xWiFi and 1xGNSS.  With 9-elements, the LTMG944 antenna provides a good match for the dual carrier modems that contain two pairs of LTE MIMO elements, one pair for each carrier.  These fleet management systems offer Cellular carrier back-up.  The 4xWiFi elements provide faster through-put for the advanced WiFi processors.

The LTMG944 covers all Global Cellular & LTE frequencies and is also Private LTE and 5-G ready.  Specifically, the Cellular/LTE element covers: 694-960 & 1710-3700 MHz; the Wifi elements cover 2.4-2.5 GHz, 4.9-6.0 GHz.

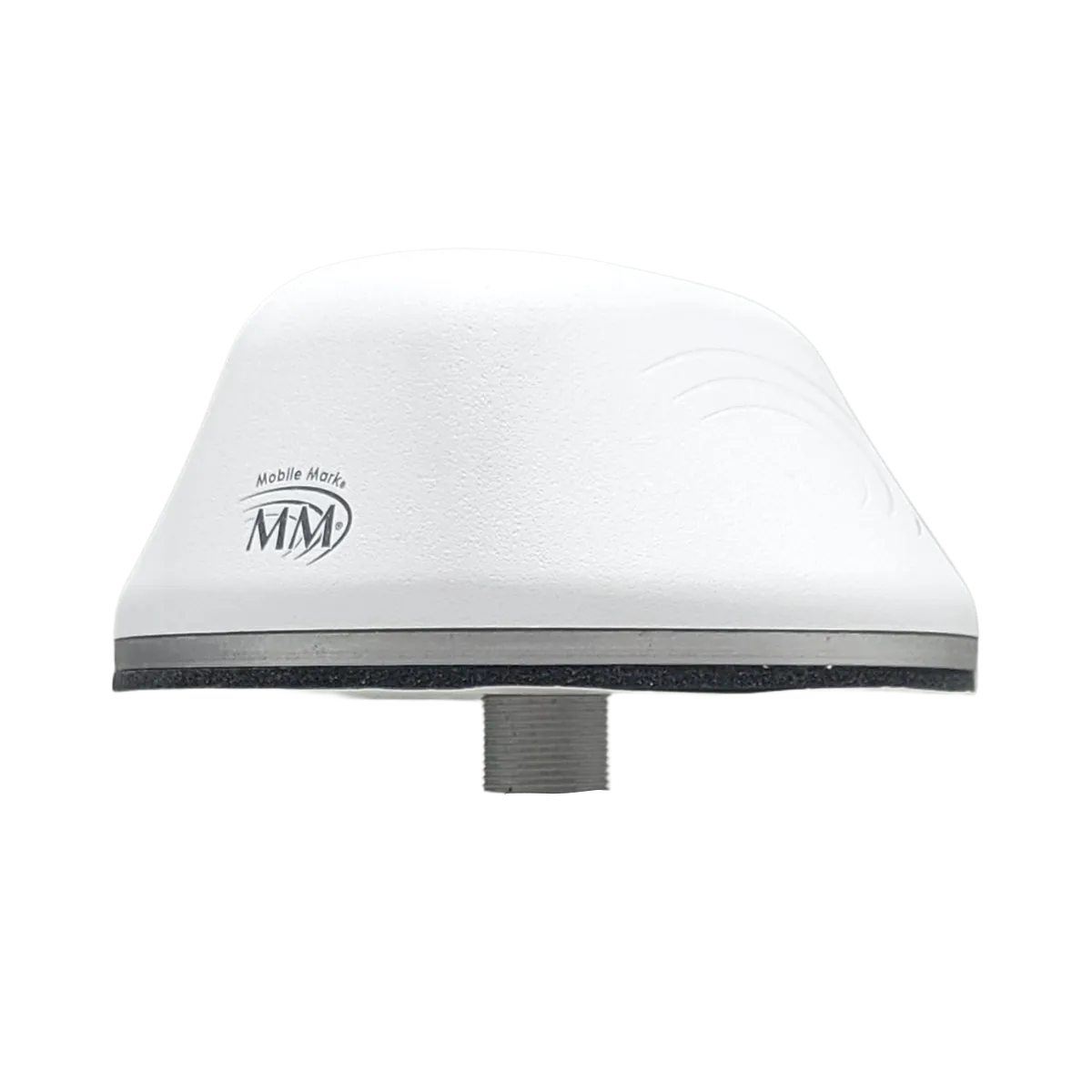

Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), the LTMG-944 series antennas take up significantly less space than multiple antennas.

Specify LTM944 for an antenna configured with a GPS antenna instead of the multi-system GNSS antenna.

Ltm944 Spec Sheet (328.2 KiB, 135 downloads)
LTM944 1710-3700 Radiation Patterns (2.3 MiB, 6 downloads)
