SMG-E15

Cellular & GNSS Surface Mount Antenna
(EU Cellular, GNSS)

Cable 1: 870-960 & 1710-1880 MHz (unity gain)
Cable 2 (GNSS): 1561, 1575, & 1602 MHz, 26 dB LNA, 5 dBi

Specify SM-E15 for the GPS model.

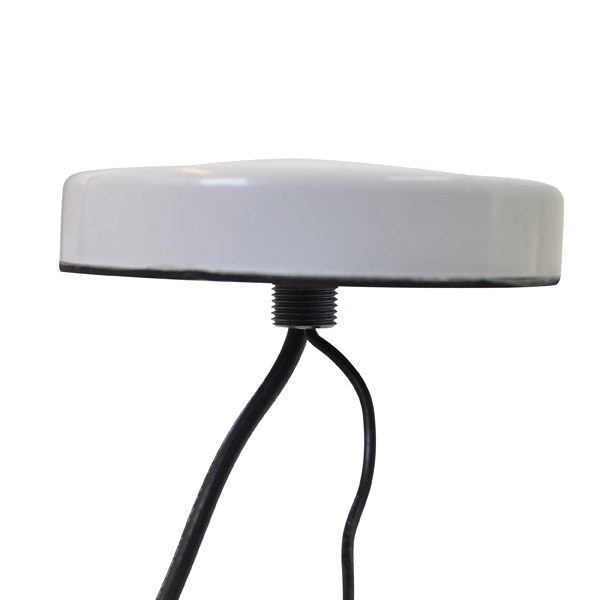

The SMG-E15 low profile surface mount antenna provides coverage on Trunking and GSM/CDMA bands.

In addition, the antenna measures only 4.5″ (114 mm) in diameter by 0.95″ (24 mm) in height. Furthermore, this low profile is valued for installations that require tight clearance levels. Also, specify SM-E15 for the GPS version of this model. GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The SMG-E15 is enclosed in a weatherproof UV rates ASA radome, and are supplied with mounting hardware and a sealing gasket.

Visit our eStore to purchase a Low Profile Surface Mount Antenna Online!

Read MORE about our other Antennas in the SMX, SM & DM SERIES.
