SMG-U15 (US Cellular, GNSS)

Cellular & GNSS Surface Mount Antenna

Cable 1: 824-894 & 1850-1990 MHz (unity gain)
Cable 2 (GNSS): 1561, 1575, & 1602 MHz, 26 dB LNA, 5 dBi

Specify SM-U15 for the GPS model.

Categories:

Description

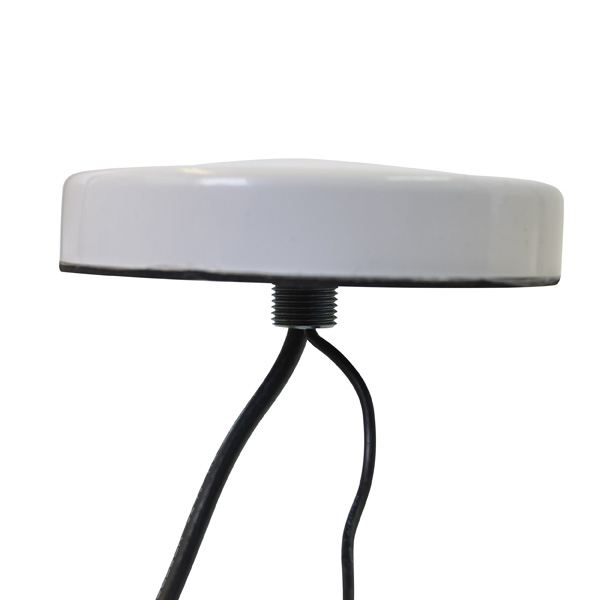

The SMG-U15 (US Cellular, GNSS) low profile surface mount antenna provides coverage on Trunking and GSM/CDMA bands. In addition, the antenna measures only 4.5″ (114 mm) in diameter by 0.95″ (24 mm) in height. This antenna is great for installations that require tight clearance levels.

Also, the SMGU15 is enclosed in a weatherproof UV rates ASA radome and supplied with mounting hardware and a sealing gasket.
Specify SM-U15 for the GPS version of this model. GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

Visit our eStore to purchase the SMG-U15 (US Cellular, GNSS) Online!

Read MORE about our other Antennas in the SMX, SM & DM SERIES.


Specifications

sm-U15-and-sm-E15-spec-sheet
