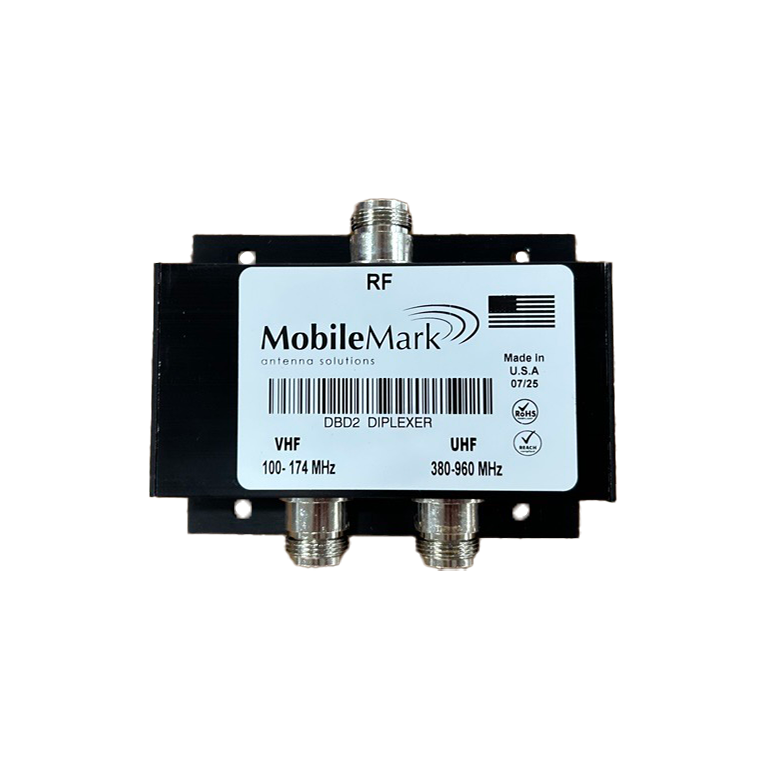

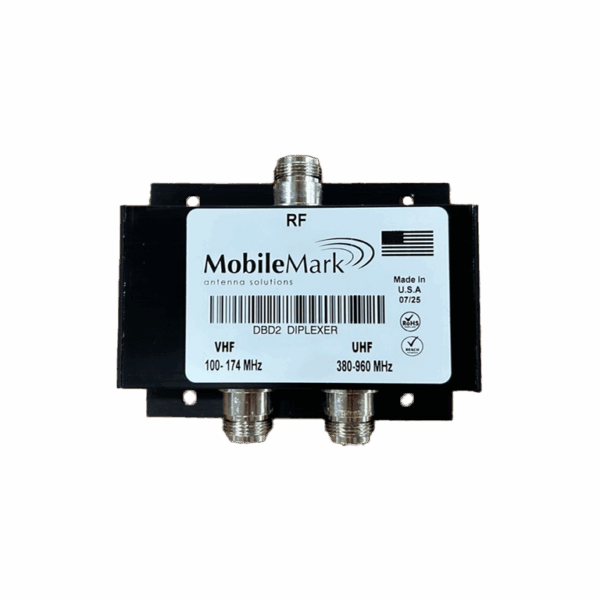

DBD2 (Dual-Band Diplexer)

The DBD2 is a diplexer that enables simultaneous VHF and UHF operation, either with a dual-band transceiver and separate VHF and UHF antennas, or with a broadband antenna and two transceivers (one for VHF and one for UHF).

This model’s Frequency coverage is 100-174, 380-960 MHz. The Radome for this product is  4.1″ L x 3.6″ W x 1.2″ H. It is designed to handle 150 watts when connected to the correct ports. All 1000 volt capacitors have been used in filter stages to insure trouble free high power operation. It has a Teflon “N” connector that terminations to insure highest quality interface for all signals.

Specifications
