PN6-868, PN6-868N

PN6-868 (868 MHz RFID)

868 MHz RFID Panel Antenna

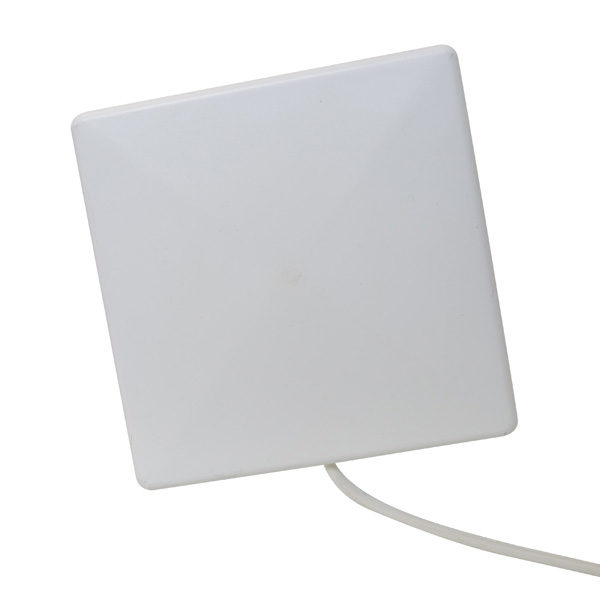

The PN6-868 is a compact circularly polarized panel antenna for European RFID readers and fixed RFID installations.

  • Covers 865–870 MHz with 5 dBic gain.
  • Offers left-hand and right-hand circular-polarization configurations.
  • Includes a swivel bracket for wall or pole alignment.
  • Supports optional flat tape or Velcro mounting.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The PN6-868 supports European UHF RFID readers across 865–870 MHz. Its compact circularly polarized panel is available in left-hand or right-hand polarization to accommodate reader orientation and site geometry.

A swivel bracket and hose clamp support aimed wall or pole placement. Flat-backed configurations can instead use compatible tape or Velcro, while the standard six-inch RG-58 lead terminates in an SMA plug.

Ideal applications:

  • European RFID portals
  • Warehouse identification points
  • Conveyor tracking systems

Example Model Configurations: PN6-868LCP-1C-WHT-6, PN6-868RCP-1C-WHT-6

Key Specifications

Feature Specification
Technology RFID; ISM
Frequency

RFID / ISM: 865-870 MHz
Gain

RFID / ISM: 5 dBic
Configuration Single RF feed
Polarization

RFID / ISM: RHCP or LHCP, configuration-dependent
Connector

RFID / ISM: SMA plug (male)
Cable

RFID / ISM: RG-58; 6 in
Mounting Swivel bracket supports wall or pole mounting with hose clamp. Optional flat backing plate accepts Velcro or tape
Dimensions 5.75 in H x 5.75 in W x 0.7 in D
Material

Housing: ASA plastic
Maximum Input Power

RFID / ISM: 10 W maximum
Environmental Rating / Qualifications

Ingress: IPX5

Qualifications: EN 61373; IEEE 1478; MIL-810G
Operating Temperature -40 °C to +85 °C

Models & Configurations

Model / Configuration Configuration Details
PN6-868LCP-1C-WHT-6 LHCP; 6 in RG-58; SMA male; white
PN6-868RCP-1C-WHT-6 RHCP; 6 in RG-58; SMA male; white
