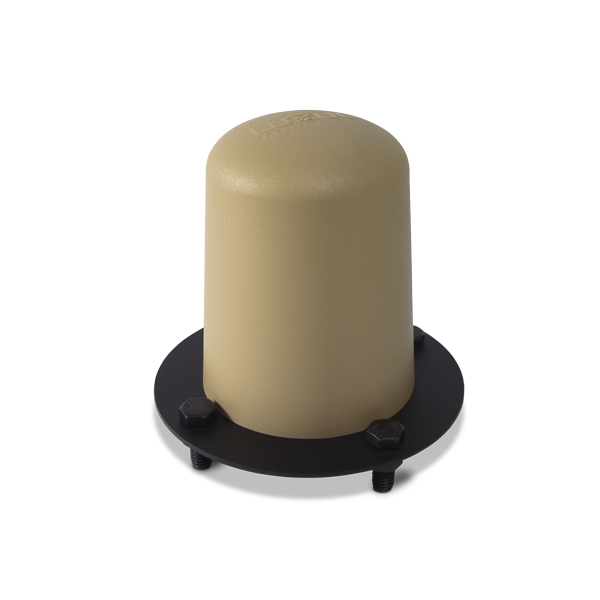

TMA-5XS-7VT

TMA-5XS-7VT (7 dBi 5.4–5.85 GHz Tactical Mesh)

7 dBi Tactical Mesh Antenna for 5.4–5.85 GHz

The TMA-5XS-7VT provides 7 dBi gain across 5400–5850 MHz in a rugged surface-mount housing for military mobile and fixed-site mesh networks.

  • Provides 7 dBi gain from 5400–5850 MHz.
  • Fits a 5.5-inch-high rugged surface-mount radome.
  • Available for United States military or export use only.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The TMA-5XS-7VT raises gain to 7 dBi for tactical mesh links operating from 5400–5850 MHz. Its 5.5-inch surface-mount housing is designed for rugged mobile networking and constrained fixed sites.

Focused vertical coverage: The sheet specifies a 33-degree elevation beamwidth and vertical polarization.

Installation interface: An N-female connector is housed beneath impact-resistant, UV-stabilized polycarbonate.

Ideal applications:

  • Military mobile mesh links
  • High-gain tactical fixed nodes

Example Model Configurations: TMA-5XS-7VT

Key Specifications

Feature Specification
Technology Tactical mesh / wireless networking
Frequency

Tactical RF: 5400-5850 MHz
Gain

Tactical RF: 7 dBi
Configuration Tactical RF (feeds 1)
Polarization

Tactical RF: Linear vertical
Connector

Tactical RF connector: N female
Mounting Surface mount
Dimensions 5.5 in high x 4.4 in diameter (14 cm x 11.2 cm)
Material Impact-resistant, UV-stabilized polycarbonate
Environmental Rating / Qualifications

Construction: Water-resistant construction
Operating Temperature -40 to 70 °C

Models & Configurations

Model / Configuration Configuration Details
TMA-5XS-7VT 5.4-5.85 GHz; 7 dBic gain; n-; N-Jack

Tech Documents & Resources

tma-5xs-7vt-spec-sheet_2

File size: 598.51 KB
Created: 11-06-2020
Updated: 27-02-2026
Hits: 1494
Download Preview
