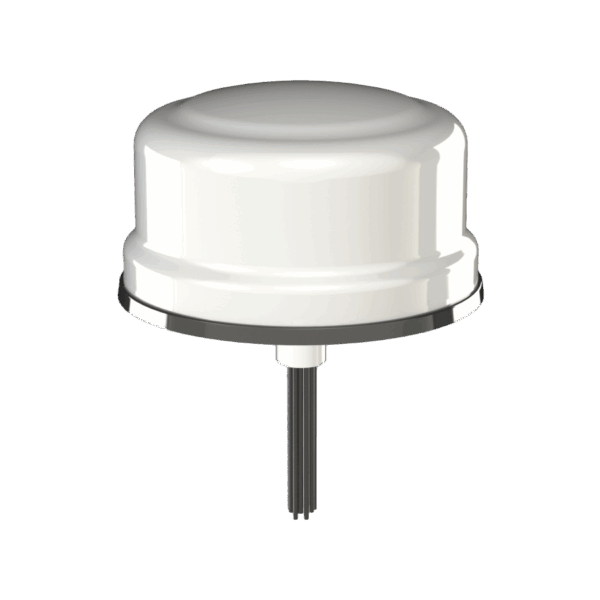

SMHG944 (4x 5G/LTE, 4x WiFi 6E/7, 1x GNSS)

Dual Carrier Multiband MIMO Antenna

9 cables: four Cellular, four WiFi 6E/7, and one GNSS

Cables 1 – 4: 617-960, 2 dBi & 1710-7200, 5 dBi
Cable 5 – 8: 2.4-2.5 & 4.9-7.2 GHz, 4 dBi
Cable 9 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi (RHCP)

Categories:

GPS GNSS Multiband by Model, SMH Series

Description

The SMHG944 is a 9-cable dual carrier multiband antenna covering Cellular, WiFi, and GNSS. This SMH model is ideal for High-Speed Mobile Cellular/WiFi communication systems.

With a rugged UV rated ASA radome,the SMHG944 is water resistant, vibration and shock resistant, making it easy to mount on a metal surface or ground plane.

This antenna is ideal for applications such as Vehicle Fleet Management, Public Transportation, Fixed Site Private Networks, WiFi Data Transfer, Advanced Multiband Routers.

Order Restrictions apply.

Specifications

SMHG944 Spec Sheet

File size: 498.49 KB

Created: 15-08-2025

Updated: 15-08-2025

Download Preview
